BSW Chameleon TV Package

BSW Chameleon TV Package

BSW

BSW PART:
CHAMELEON-TV-PKG

TV Loudness Processor Package with 12G SDI Converters

More BSW More Angry Audio More BSW Bundles
$2,174.00 MSRP: $2,319.00
You save $145.00

This BSW bundle includes:

1 Angry Audio Chameleon TV Processor

1 Blackmagic Design Teranex Mini Audio to SDI 12G

1 Blackmagic Design Teranex Mini SDI to Audio 12G

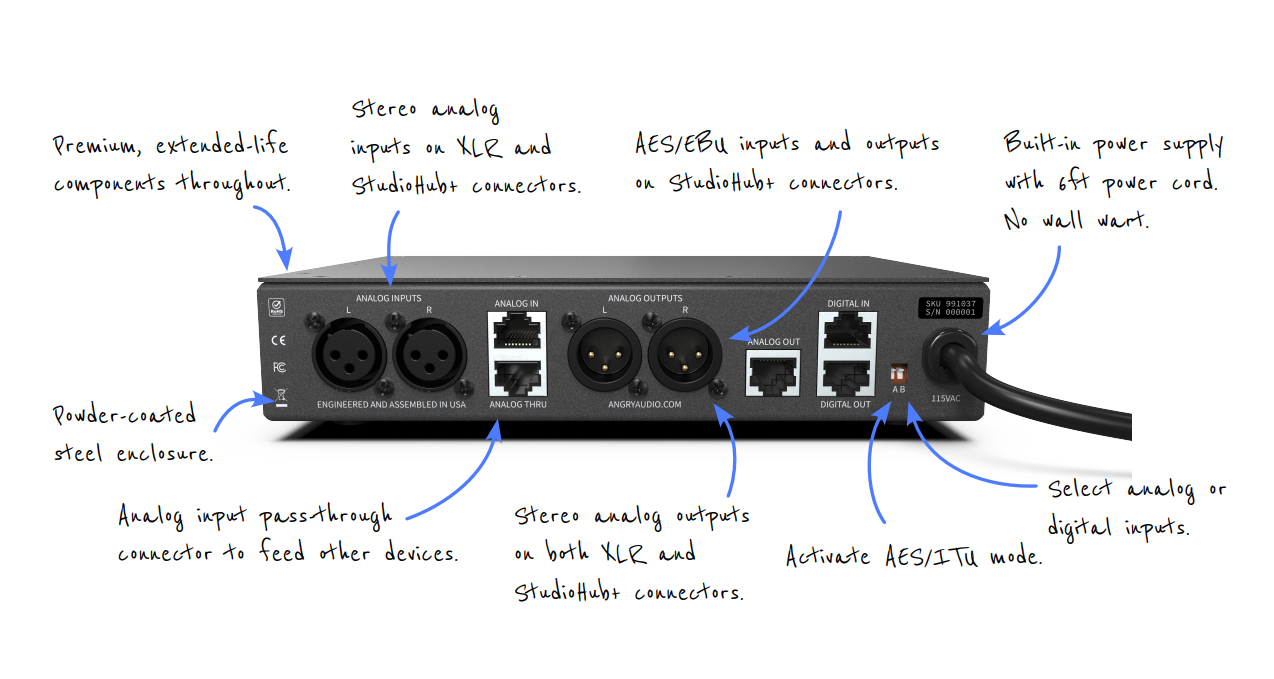

Angry Audio Chameleon TV

The CALM Act is not a suggestion. Neither is EBU R128. And streaming platforms will quietly bury your audio if it doesn’t hit -16 LUFS. Compliance with all of this, and whatever comes next, used to mean choosing between an ENG van and a loudness processor. Chameleon TV handles all three. One switch picks your target. -24 LUFS for ATSC A/85. -23 LUFS for EBU R128. -16 LUFS for streaming and OTT. CTV does the rest.

CTV listens to what’s coming in and adapts in real time. No thresholds to set. No attack and release times to tune. No multiband mystery meat. It controls dynamic range, levels the loudness, and gets out of the way. Dialog stops mumbling. Music emotes. Sound effects don’t make them scramble for the remotes. Commercials behave. Finally.

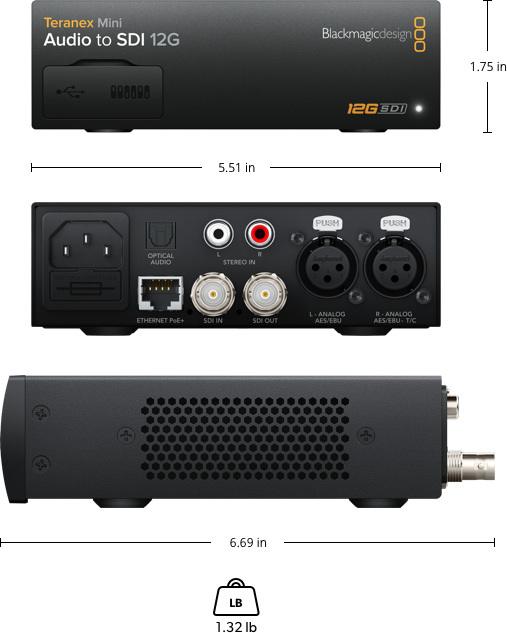

Blackmagic Design Teranex Mini Audio to SDI 12G

Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.

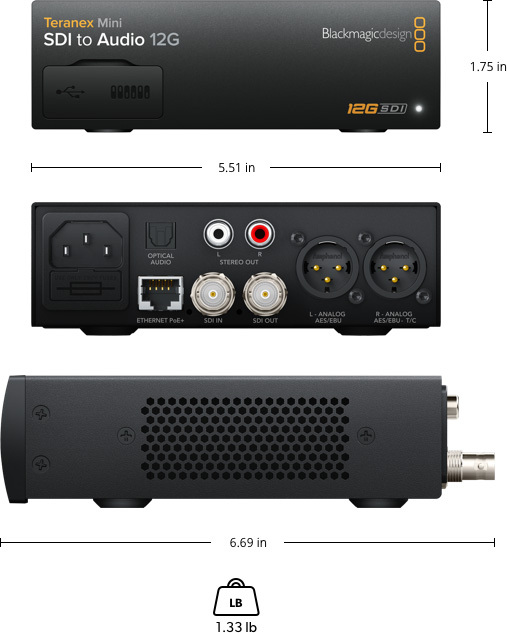

Blackmagic Design Teranex Mini SDI to Audio 12G

De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.



$2,174.00 MSRP: $2,319.00
You save $145.00

Out of stock

Add to quote

    • Main Features:
    • Pick your standard - -24 LUFS, -23 LUFS, -16 LUFS.
    • Adaptive - Tunes itself to the audio in real time.
    • Goldilocks - Goldilocks. Three density settings. Gentle, firm, or just right.
    • One job - Loudness compliance. That's it. That's the box.
    • Stereo I/O - Stereo I/O. AES/EBU or analog. Pair with Blackmagic for SDI or HDMI.
    • Specifications:
    • Angry Audio Chameleon TV


      •

  • Teranex Mini Audio to SDI 12G Specs
    - SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching
    - SDI Video Outputs: 1 x 12G-SDI output
    - Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input
    - Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input
    - Embedded Audio Support: 16 channels
    - Optical Audio Input: S/PDIF Signal with TOSLINK Connector
    - Multi Rate Support: Automatic switching between SD/HD/2K and 4K
    - Updates and Configuration: USB or Ethernet
    - Reclocking: Yes
    •
  • Video Standards
    - SD: 525i59.94 NTSC, 625i50 PAL
    - HD: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    - 2K: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
    - Ultra HD: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    - 4K: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
    •
  • SDI Specifications
    - SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
    - SDI Video Rates: Auto switching between SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI
    - SDI Video Sampling: 4:2:2, 4:4:4
    - SDI Audio Sampling: 48 kHz and 24-bit
    - SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G‑SDI
    - SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
    - SDI Color Space: REC 601, REC 709
    •
  • Settings Control
    - Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    - Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
    •
  • Power Requirements (Audio to SDI 12G)
    - Built in international AC power supply with IEC C14 inlet
    - IEC Power cable required
    - 100 - 240V AC Input
    - Power Over Ethernet: 48V DC using PoE+
    - Power Consumption: 16 Watts
    - Operational Voltage Range: 100 - 240V AC
    •
  • Teranex Mini SDI to Audio 12G Specs

  • - SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching
    - SDI Video Outputs: 1 x 12G-SDI loop output
    - Analog Audio Outputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output
    - Digital Audio Outputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output
    - Embedded Audio Support: 16 channels
    - Optical Audio Output: S/PDIF Signal with TOSLINK Connector
    - Multi Rate Support: Automatic switching between SD/HD/2K and 4K
    - Updates and Configuration: USB or Ethernet
    - Reclocking: Yes
    •
  • SDI to Audio Video Standards
    - SD: 525i59.94 NTSC, 625i50 PAL
    - HD: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    - 2K: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
    - Ultra HD: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    - 4K: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
    •
  • SDI to Audio Technical Specifications
    - SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
    - SDI Video Rates: Auto switching between SDI, HD level A and B 3G‑SDI, 6G‑SDI and 12G‑SDI
    - SDI Video Sampling: 4:2:2 and 4:4:4
    - SDI Audio Sampling: 48 kHz and 24-bit
    - SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
    - SDI Color Space: REC 601, REC 709
    •
  • SDI to Audio Settings Control
    - Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    - Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
    •
  • Power Requirements (SDI to Audio 12G)
    - Built-in international AC power supply with IEC C14 inlet
    - IEC Power cable required
    - 100 - 240V AC Input
    - Power Over Ethernet: 48V DC using PoE+
    - Power Consumption: 16 Watts
    - Operational Voltage Range: 100 - 240V AC
    •
