Blackmagic Design Teranex Mini Audio to SDI 12G

Blackmagic Design Teranex Mini Audio to SDI 12G

BLACKMAGIC

BSW PART:
BMD-CONVNTRMCBAUSDI
More Converters More Blackmagic Design
$665.00

Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.

$665.00
Add to quote

  • Main Features:
  • 1 x 12G-SDI SD/HD/2K/4K auto switching input
  • 1 x 12G-SDI output
  • 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors
  • 4 channels professional 110Ω balanced digital audio via XLR connectors
  • 16 channels embedded audio support
  • Optical Audio Input via S/PDIF TOSLINK connector
  • Automatic switching between SD/HD/2K and 4K
  • USB and Ethernet updates and configuration
  • Reclocking support
  • Specifications:
  • Connections
    - SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching
    - SDI Video Outputs: 1 x 12G-SDI output
    - Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input
    - Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input
    - Embedded Audio Support: 16 channels
    - Optical Audio Input: S/PDIF Signal with TOSLINK Connector
    - Multi Rate Support: Automatic switching between SD/HD/2K and 4K
    - Updates and Configuration: USB or Ethernet
    - Reclocking: Yes
  • Standards
    - SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    - HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    - 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
    - Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    - 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
  • SDI Specifications
    - SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
    - SDI Video Rates: SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI
    - SDI Video Sampling: 4:2:2, 4:4:4
    - SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    - SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G‑SDI
    - SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
    - SDI Color Space: REC 601, REC 709
  • Software
    - Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet
    - Internal Software Upgrade: Via included updater application
  • Operating Systems
    - Mac 10.15 Catalina
    - Mac 11.1 Big Sur or later
    - Windows 10, 64-bit
  • Settings Control
    - Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    - Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

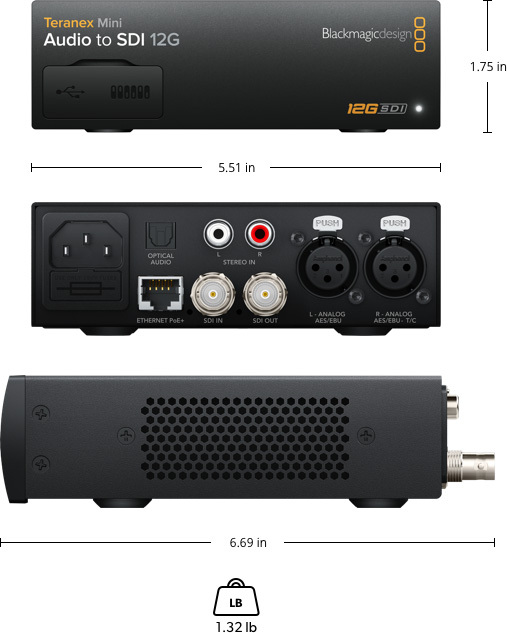

  • Physical Specifications
  • Power Requirements
    - Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input
    - Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
    - Power Consumption: 16 Watts
    - Operational Voltage Range: 100 - 240V AC
