Blackmagic Design Teranex Mini - SDI to Audio 12G

Blackmagic Design Teranex Mini - SDI to Audio 12G

BLACKMAGIC

BSW PART:
BMD-CONVNTRMCASDIAU

Teranex Mini - SDI to Audio 12G

More Converters More Blackmagic Design
$655.00

De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.

$655.00
Add to quote

  • Main Features:
  • 1 x 12G-SDI SD/HD/2K/4K auto switching input
  • 1 x 12G-SDI loop output
  • 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors
  • 4 channels professional 110Ω balanced digital audio via XLR connectors
  • 16 channels embedded audio support
  • Optical Audio Output via S/PDIF TOSLINK connector
  • Automatic switching between SD/HD/2K and 4K
  • USB and Ethernet updates and configuration
  • Reclocking support
  • Specifications:
  • Connections
    - SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching
    - SDI Video Outputs: 1 x 12G-SDI loop output
    - Analog Audio Outputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output
    - Digital Audio Outputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output
    - Embedded Audio Support: 16 channels
    - Optical Audio Output: S/PDIF Signal with TOSLINK Connector
    - Multi Rate Support: Automatic switching between SD/HD/2K and 4K
    - Updates and Configuration: USB or Ethernet
    - Reclocking: Yes
  • Standards
    - SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    - HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    - 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
    - Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    - 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
  • SDI Specifications
    - SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
    - SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI
    - SDI Video Sampling: 4:2:2 and 4:4:4
    - SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    - SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
    - SDI Color Space: REC 601, REC 709
  • Software
    - Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet
    - Internal Software Upgrade: Via included updater application
  • Operating Systems
    - Mac 10.15 Catalina
    - Mac 11.1 Big Sur or later
    - Windows 10, 64-bit
  • Settings Control
    - Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    - Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
  • Power Requirements
    - Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input
    - Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
    - Power Consumption: 16 Watts
    - Operational Voltage Range: 100 - 240V AC

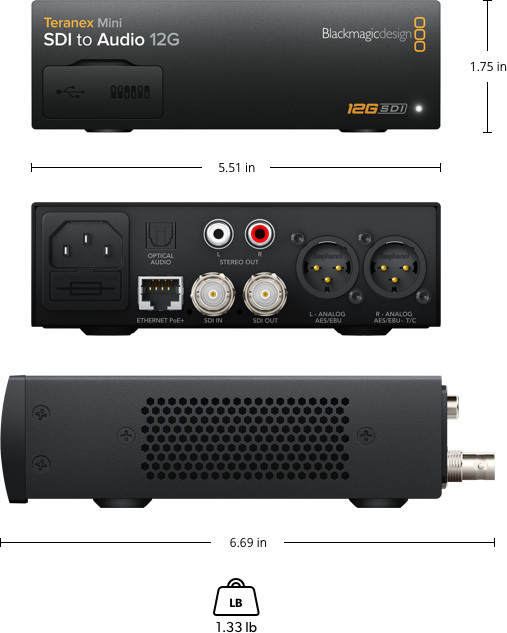

  • Physical Specifications
  • Environmental Specifications
    - Operating Temperature: 0° to 40°C (32° to 104°F)
    - Storage Temperature: -20° to 60°C (-4° to 140°F)
    - Relative Humidity: 0% to 90% non‑condensing
  • What's Included
    - Teranex Mini SDI to Audio 12G
    - Welcome wallet with QR code for software download
  • Warranty
    - 3 Year Limited Manufacturer’s Warranty
