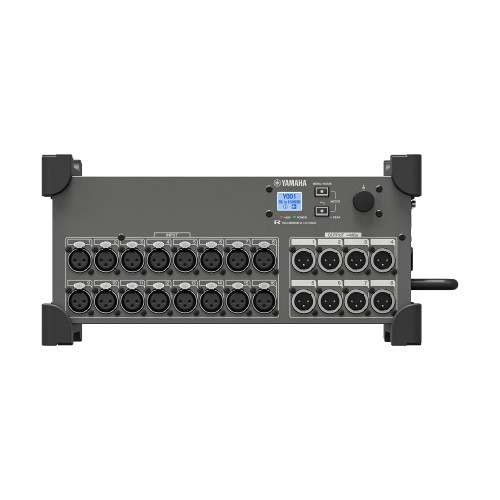

Yamaha RUIO1608SB-D

Yamaha RUIO1608SB-D

BSW PART:
RUIO1608SB-D

16 X 8 Utliity Dante Box Stage Box

More Interfaces and Routers
$2,199.99 MSRP: $2,639.00
You save $439.01

The Dante-compatible RUio1608SB-D is a compact I/O stagebox featuring 16 analog inputs and 8 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, its rugged construction makes it ideal for on-stage deployment, while an optional rack-mount kit provides additional installation flexibility.

RUio1608SB-D I/O Rack New
The Dante-compatible RUio1608SB-D is a compact I/O stagebox featuring 16 analog inputs and 8 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, its rugged construction makes it ideal for on-stage deployment, while an optional rack-mount kit provides additional installation flexibility.

Analog I/O: 16 inputs, 8 outputs
Dante: 8 receive channels, 16 transmit channels
Local display and control of gain and phantom power settings
Dimensions (W x H x D): 374 × 170 × 145 mm (14.7” x 6.7” x 5.7”)
Net weight: 3.5 kg (7.7 lb)

Yamaha's first portable I/O box delivers exceptional I/O versatility in a Stagebox format
Yamaha's guiding principle in live sound design has always been to capture transparent sound from the stage and only then to color it with successive layers of audio processing. The RUio1608SB-D remains true to this principle, and gives audio engineers an ideal sonic foundation to build upon to ensure their sound is delivered and received exactly as intended using the versatile tools of our mixers and processors.

With 16 inputs and 8 outputs in a Dante-compatible I/O stagebox, the RUio1608SB-D is compact enough to be placed directly on the stage without getting in the way. Sleek design, the highly flexible connectivity afforded by Dante, and the ease with which it can be controlled from a Yamaha digital mixer make this the perfect stagebox for live music performances, houses of worship, corporate events, and practically any other application you can think of.

$2,199.99 MSRP: $2,639.00
You save $439.01

Free Shipping

Out of stock

Add to quote

  • Main Features:
  • A compact, highly robust I/O stagebox
    - Simple, unobtrusive design
    - Sturdy protectors and grip-friendly handles
    - Lightweight and portable for stage deployment
    - Panel lock function prevents accidental operation
  • Safe for setup anywhere
    - Damage-resistant rubber protectors help prevent scratching stage floors
    - Up to two units can be stacked to maximize space efficiency
  • Check and set parameters right away with the onboard display
    - Built-in mini-LCD screen allows monitoring of channel meters
    - Configure Dante, HA gain, phantom power, and other settings directly on the unit
    - No mixing console or PC required
    - Illuminated keys and LEDs provide fast error indication
  • A solid foundation for inspirational live sound
    - Inherits Yamaha's transparent sound philosophy
    - Designed to faithfully capture and deliver stage audio to the mixing console
  • Dante-enabled for flexible system design
    - Supports Audinate Dante networking
    - Allows flexible device placement and system configuration
    - Includes built-in Dante redundancy for improved reliability
  • Effortless control from Yamaha consoles and processors
    - Remote control of HA gain and I/O parameters from Yamaha digital mixers
    - Compatible with ProVisionaire applications for processor control
  • Dedicated network control port for use in large systems
    - Separate control network support
    - Reliable system control without affecting the Dante network
  • Use anywhere with R-Remote
    - Compatible with Yamaha R Remote software
    - Functions as a compact Dante interface for recording and other applications without a mixing console
  • Perfect for installed applications
    - Optional RK-RUio1608SB Rack Mount Kit available
    - Special opening allows neat cable routing when rack mounted
  • Specifications:
  • General Specifications
    - Analog Input: 16
    - Analog Output: 8
  • Sampling Frequency Rate
    - External: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz ±200 ppm +4.1667%, +0.1%, -0.1%, -4.0% ±200 ppm
  • Signal Delay
    - Less than 1.7 ms @Fs=96 kHz
    - 2.0 ms @Fs=48 kHz
    - RUio1608SB-D INPUT to RUio1608SB-D OUTPUT connect with DM5 using Dante. Dante Receive Latency set to 0.25 ms
  • Total Harmonic Distortion
    - Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN : 0 dB into 10k Ω
    - Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN : +64 dB into 10k Ω
  • Frequency Response
    - +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs=48 kHz or 96 kHz
  • Dynamic Range
    - 114 dB typ., DA Converter
    - 109 dB typ., Input to Output, GAIN: 0 dB
  • Hum & Noise Level
    - Equivalent Input Noise: -128 dBu typ., GAIN: +64 dB
    - Residual Output Noise: -88 dBu, main stereo channel off
  • Crosstalk
    - INPUT: -100 dB, adjacent inputs, GAIN: 0 dB, @1 kHz
    - OUTPUT: -100 dB, input to output, @1 kHz
  • Power
    - Power Requirements: 100–240 V, 50 Hz/60 Hz
    - Power Consumption: 40 W
  • Dimensions
    - Width: 374 mm (14.7")
    - Height: 170 mm (6.7")
    - Depth: 145 mm (5.7")
  • Weight
    - Net Weight: 3.5 kg (7.7 lb)
  • Accessories
    - Read This First x 1
    - AC Power cord x 1
  • Operating Environment
    - NC Value: Fan Speed LOW: NC=20 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit)
    - Operating Temperature Range: 0 to 40°C
    - Storage Temperature Range: -20 to 60°C
  • Analog Input Standards
    - Input Terminal: INPUT 1–16
    - Gain: +64 dB / 0 dB
    - Actual Source Impedance: 10 kΩ
    - For Use with Nominal: 50–600 Ω Mics, 600 Ω Lines
    - Sensitivity (+64 dB): -80 dBu (0.078 mV)
    - Nominal (+64 dB): -60 dBu (0.775 mV)
    - Max.before clip (+64 dB): -40 dBu (7.75 mV)
    - Sensitivity (0 dB): -16 dBu (123 mV)
    - Nominal (0 dB): +4 dBu (1.23 V)
    - Max.before clip (0 dB): +24 dBu (12.3 V)
    - Connector: XLR 3-hole chassis (Balanced)
  • Analog Output Standards
    - Input Terminal: OUTPUT 1–8
    - Actual Source Impedance: 75 Ω
    - For Use with Nominal: 10 kΩ Lines
    - Nominal Output Level: +4 dBu (1.23 V)
    - Max.before clip: +24 dBu (12.3 V)
    - Connector: XLR 3-pin chassis (Balanced)
  • Digital I/O Standards
    - Terminals: Dante PRIMARY/SECONDARY
    - Format: Dante
    - Data Length: 24-bit / 32-bit
    - Level: 1000BASE-T
    - Audio: 16ch TX / 8ch RX
    - Connector: etherCON Cat5e
  • Control I/O Standards
    - Terminal: NETWORK
    - Format: IEEE802.3
    - Level: 1000BASE-T / 100BASE-TX
    - Connector: RJ-45
