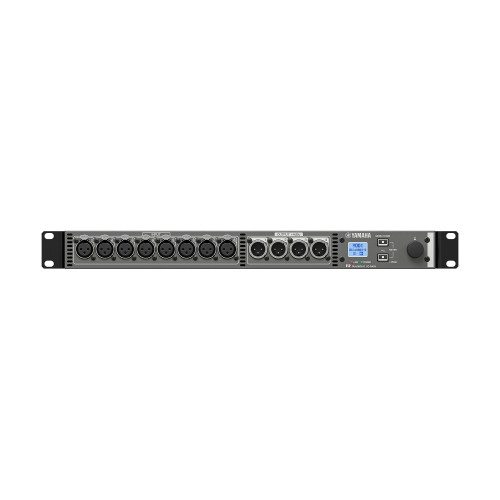

Yamaha RUIO0804-D

Yamaha RUIO0804-D

BSW PART:
RUIO0804-D

8 x 4 Utliity I/O Rack

More Interfaces and Routers More Yamaha
$1,499.99 MSRP: $1,799.00
You save $299.01

The Dante-compatible RUio0804-D is a compact 1U I/O stagebox featuring 8 analog inputs and 4 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, it provides a portable and flexible solution for expanding system connectivity.

RUio0804-D I/O Rack New
The Dante-compatible RUio0804-D is a compact 1U I/O stagebox featuring 8 analog inputs and 4 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, it provides a portable and flexible solution for expanding system connectivity.

Analog I/O: 8 inputs / 4 outputs
Dante: 4 receive channels, 8 transmit channels
Local display and control of gain and phantom power settings
Power consumption: 30 W
Dimensions (W x H x D): 480 × 44 × 369 mm (18.9” x 1.7” x 14.5”)
Net weight: 3.7 kg (8.2 lb)

Compact I/O, unlimited potential
Yamaha's guiding principle in live sound design has always been to capture transparent sound from the stage and only then to color it with successive layers of audio processing. With 8 inputs, 4 outputs, and Dante compatibility neatly housed in a 1U chassis, the RUio0804-D 1U I/O unit remains true to this key principle as it undertakes the vital role of audio input. Ever found yourself looking for just a few more input or output channels? Ever needed to send an output signal to a remote device? In this and countless other situations, the RUio0804-D has your back.

$1,499.99 MSRP: $1,799.00
You save $299.01

Free Shipping

Out of stock

Add to quote

  • Main Features:
  • Compact, portable I/O solution for any application
    - With 8 XLR inputs, 4 XLR outputs, and Dante-compatibility in a compact 1U chassis, this portable I/O rack is the perfect fit for installed use at venues such as theaters, temporary setups at live performances and events, and everywhere in between—no more so than when you find yourself needing a few more channels somewhere away from the mixing console.
    - The RUio0804-D 1U also provides for simple, flexible system design through Dante connectivity and remote control from the console.
  • Dante-enabled for flexible system design
    - Audinate’s Dante network protocol offers unrivalled flexibility in system setup and configuration.
    - Freedom to assemble almost any combination of devices and physically locate them wherever you find most convenient.
    - Built-in redundancy helps keep your system operating if a problem occurs.
  • Effortless control from Yamaha consoles and processors
    - Managing patching and I/O parameters is simple when connected via Dante to Yamaha digital mixing consoles and audio processors.
    - The stagebox can be mounted as a Dante device, allowing remote control of HA gain and other parameters.
    - Parameters can also be controlled using the ProVisionaire Design application.
  • Special port for dedicated control within huge setups
    - Configure a dedicated network address for reliable control even when the unit is part of a large system.
    - Create a dependable control system without affecting the Dante network.
  • Use anywhere with R-Remote
    - Compatible with the R Remote control app for Yamaha I/O products.
    - Can be used as a lightweight, compact Dante interface with R Remote controlling HA gain and other parameters.
  • A solid foundation for inspirational live sound
    - Inherits Yamaha's tradition of staying true to the real sound.
    - Designed to capture stage sound accurately and deliver it to the mixing console with transparency.
  • Check and set parameters right away with the onboard display
    - Built-in mini-LCD screen for checking and setting Dante and input/output parameters directly.
    - Keys and LEDs illuminate during errors to support fast troubleshooting.
  • Specifications:
  • General Specifications
    - Analog Input: 8
    - Analog Output: 4
  • Sampling Frequency Rate
    - External: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz ±200 ppm +4.1667%, +0.1%, -0.1%, -4.0% ±200 ppm
  • Signal Delay
    - Less than 1.7 ms @Fs=96 kHz
    - 2.0 ms @Fs=48 kHz
    - RUio0804-D INPUT to RUio0804-D OUTPUT connect with DM5 using Dante. Dante receive Latency set to 0.25 ms
  • Total Harmonic Distortion
    - Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN : 0 dB into 10k Ω
    - Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN : +64 dB into 10k Ω
  • Frequency Response
    - +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs=48 kHz or 96 kHz
  • Dynamic Range
    - 114 dB typ., DA Converter
    - 109 dB typ., Input to Output, GAIN: 0 dB
  • Hum & Noise Level
    - Equivalent Input Noise: -128 dBu typ., GAIN: +64 dB
    - Residual Output Noise: -88 dBu, main stereo channel off
  • Crosstalk
    - INPUT: -100 dB, adjacent inputs, GAIN: 0 dB, @1 kHz
    - OUTPUT: -100 dB, input to output, @1 kHz
  • Power
    - Power Requirements: 100–240 V, 50 Hz/60 Hz
    - Power Consumption: 30 W
  • Dimensions
    - Width: 480 mm (18.9")
    - Height: 44 mm (1.7")
    - Depth: 369 mm (14.5")
  • Weight
    - Net Weight: 3.7 kg (8.2 lb)
  • Accessories
    - Read This First x 1
    - AC Power cord x 1
  • Operating Environment
    - NC Value: Fan Speed LOW: NC=20 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit)
    - Operating Temperature Range: 0 to 40°C
    - Storage Temperature Range: -20 to 60°C
  • Analog Input Standards
    - Input Terminal: INPUT 1–8
    - Gain: +64 dB / 0 dB
    - Actual Source Impedance: 10 kΩ
    - For Use with Nominal: 50–600 Ω Mics, 600 Ω Lines
    - Sensitivity (+64 dB): -80 dBu (0.078 mV)
    - Nominal (+64 dB): -60 dBu (0.775 mV)
    - Max.before clip (+64 dB): -40 dBu (7.75 mV)
    - Sensitivity (0 dB): -16 dBu (123 mV)
    - Nominal (0 dB): +4 dBu (1.23 V)
    - Max.before clip (0 dB): +24 dBu (12.3 V)
    - Connector: XLR 3-hole chassis (Balanced)
  • Analog Output Standards
    - Input Terminal: OUTPUT 1–4
    - Actual Source Impedance: 75 Ω
    - For Use with Nominal: 10 kΩ Lines
    - Nominal Output Level: +4 dBu (1.23 V)
    - Max.before clip: +24 dBu (12.3 V)
    - Connector: XLR 3-pin chassis (Balanced)
  • Digital I/O Standards
    - Terminals: Dante PRIMARY/SECONDARY
    - Format: Dante
    - Data Length: 24-bit / 32-bit
    - Level: 1000BASE-T
    - Audio: 8ch TX / 4ch RX
    - Connector: etherCON Cat5e
  • Control I/O Standards
    - Terminal: NETWORK
    - Format: IEEE802.3
    - Level: 1000BASE-T / 100BASE-TX
    - Connector: RJ-45
