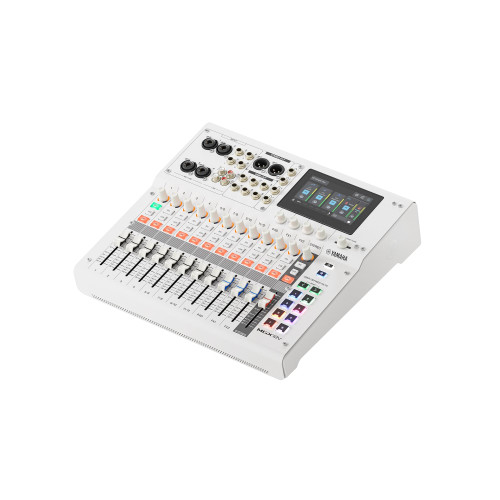

Yamaha MGX12V-W

Yamaha MGX12V-W

Yamaha

BSW PART:
MGX12V-W

18ch Digital Mixing Console, dual USB-C audio/video interface, white finish

More Mixers More Yamaha More Powered Mixers
$1,099.99 $1,330.00
You save $230.01

The Digital Evolution of an Analog Classic
Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

In addition to the essential features and versatility you expect from a professional mixer, the MGX12V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.

For musicians, sound engineers, producers, as well as artists, streamers and content creators—and especially for those producing podcasts with four participants—the four mic inputs and four headphone outputs, together with the ability to seamlessly integrate high-definition video into their workflow, opens up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX12V will elevate your production quality and captivate your audience.

Versatility and Professional Sound You Can Count On
The MGX features carefully selected physical I/O and extensive mixing capacity that enables flexible sound creation. Onboard DSP effects further enhance audio processing power, delivering a refined, professional sound for any application.

Yamaha MGX12V: All the Essentials
The MGX12V is equipped with 4 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 6 TRS OMNI outs, and 4 headphone ports, enabling smooth collaboration and versatile monitoring.

Yamaha MGX12V: Power. Capability. Versatility.
Extensive mixing capacity with 8 mono channels, 4 stereo channels, a Sound Pad, and 2 FX channels.

Yamaha MGX12V: Professional, True Sound
MGX mic preamps achieve 86 dB gain range with ultra-low distortion and 125 dB dynamic range.

Yamaha MGX12V: Hone Your Vision
Creative tools include Gate, Compressor, EQ, Reverb, Amp Simulator, Voice Changer.

Yamaha MGX12V: Wherever You Go
Lightweight 9 lb design with rugged durability.

Flexible Power, Unrivaled Performance
Multifunctional hub with USB, Bluetooth, sound pads, microSD, HDMI-USB A/V interface.

$1,099.99 $1,330.00
You save $230.01

Free Shipping

Out of stock

Add to quote
Qualifies for free shipping

  • Main Features:
  • Yamaha MGX12V: Optimized Integration
  • USB MAIN: 18-track recording/playback
  • USB SUB: 2-track recording/playback
  • Bluetooth Audio Input allows wireless integration.
  • Eight customizable sound pads.
  • Up to 16-track microSD recording and 2-track playback.
  • Touch-panel GUI, routing, effects, scene recall.
  • Twelve 60 mm faders, touchscreen, customizable knobs.
  • Auto Gain, Clip Safe, Ducker, Multi-Band Compressor, Delay.
  • Scene Recall + Simple Mode.
  • User-defined pads and knobs with 4 banks.
  • HDMI-USB capture + pass-through for video workflows.
  • Capture: 4K/60fps, 1080p/240fps
  • Pass-through: same formats.
  • Steinberg software suite included.
  • Stream Deck and OBS integration with future remote control support.
  • Specifications:
  • I/O Connectors:
    • Analog Input: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
    • Analog Output: 2 XLR, 6 TRS
    • USB TO HOST: 2 USB Type‑C, MAIN: 32-bit / USB: 16-bit
    • Phonos: 4 TRS (100 mW + 100 mW @ 8Ω)
    • DC: 1 (barrel type, DC power IN)
    • microSD Card Slot: 1
    • Bluetooth: 1 input (Bluetooth 5.0, A2DP)
    • HDMI: 1 IN / 1 THRU (A/V pass-through)
  • User Interface:
    4.3-inch touchscreen, 12 × 60 mm faders, 12 SEND knobs, 5 rotary encoders (4 screen icons + 1 TOUCH AND TURN)
  • Recording & Playback:
    • USB MAIN: 18‑track recording, 18‑track playback
    • USB SUB: 2‑track recording, 2‑track playback
    • microSD: up to 16‑track recording, 2‑track playback
  • Sampling Frequency Rate:
    96 kHz – 44.1 kHz
  • Signal Delay:
    Less than 4 ms (INPUT → STEREO OUT @ 52.86 kHz)
  • Frequency Response:
    +0.0 / –2.0 dB, 20 Hz–20 kHz, Input Gain: Min
  • Dynamic Range:
    125 dB (DAC → Stereo Out)
    115 dB (Input → Main Out, Gain Min)
  • Total Harmonic Distortion:
    < 0.002%, 20 Hz–20 kHz @ +4 dBu
  • Hum & Noise Level:
    • Equivalent Input Noise: –128 dBu typ (Gain Max)
    • Residual Output Noise: –108 dBu (ST main off)
  • Crosstalk:
    –120 dB adjacent INPUT/ST OUT @ 1 kHz
  • Gain Range:
    86 dB
  • Power Requirements:
    DC15V (2.4A), PA‑300C (100–240V)
  • Power Consumption:
    38.4 W
  • Dimensions:
    W: 345 mm (13.2")
    H: 96 mm (3.8")
    D: 319 mm (12.6")
  • Net Weight:
    4.1 kg (9 lb)
  • Included Accessories:
    Start Guide, Safety Guide, Steinberg Software License Cards ×2, Basic FX Suite license card, AC Adapter (PA‑300C)
  • Optional Accessories:
    RM‑MGX12
  • Operating Temperature:
    0 – 40°C
  • Storage Temperature:
    –20 – 60°C
  • Mixing Capacity:
    • Input Channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX
    • Mix Buses: 8 (mono)
    • Stereo Buses: 1
    • FX Buses: 2
    • Cue Buses: 1
  • On‑board DSP:
    Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip, Guitar Amp Classics, Pitch Fix, Vocal Enhancer, Doubler, Multi‑Band Compressor, Compander, Delay, RE‑X (Reverb)
