TWR PF-250

TWR PF-250

TWR

BSW PART:
PF-250

*Flasher, Solid State

More Tower Beacons and Flashers
$109.00 $118.00
You save $9.00

Solid State Flasher

B-KON Flashers have proven their reliability through years of use on Communication Towers, Smoke Stacks, Cooling Towers, Tall Buildings, Bridges and Utility Towers. The highest quality components are encapsulated in a rugged plastic housing with a molded-in heat transfer plate. The flash rate, ratio, and fail-safe design meet FAA regulations. Zero voltage switching can increase lamp life up to ten times.

• Zero Voltage Switching - Up to 10 Times Longer Lamp Life

• No RFI Caused by Contacts Closing

• High Inrush Capability - Up to 200 A

$109.00 $118.00
You save $9.00

In Stock

Add to quote

  • Main Features:
  • Accepts multiple input voltages
  • Zero AC voltage switching
  • Designed for LED and incandescent loads
  • Specifications:
  • Input Voltage: 120-240V AC +/-10% 50/60 Hz
  • Maximum Current: 2500 WATTS; 120V AC & 240V AC
  • In Rush Current: 200 AMPS Peak for 1 Cycle of AC
  • Flash Rate: 30 FPM +/-2 FPM
  • ON/OFF Ratio:
    50%-67% ON TIME
    33%-50% OFF TIME
  • Circuitry: Encapsulated Solid State
  • Weight: 3.2 OZ (90.7 Grams)
  • Termination: 0.250 Male Spade Terminals

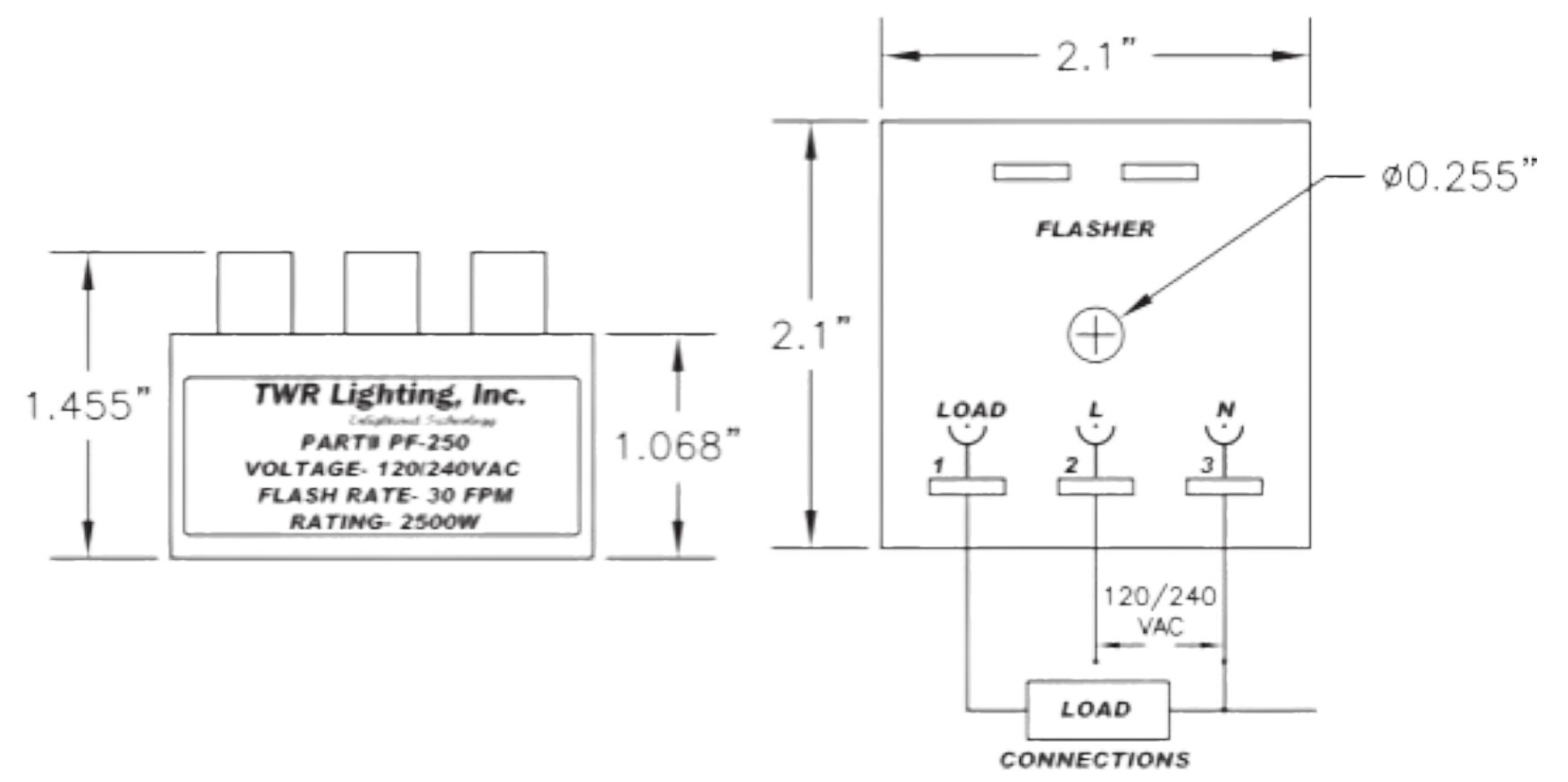

  • Mounting:
    Metal surface with one 1/4-20 x 1.25" machine screw. (must use heat sink compound between module base and metal surface. Metal surface not to exceed 80°C at maximum current rating)
