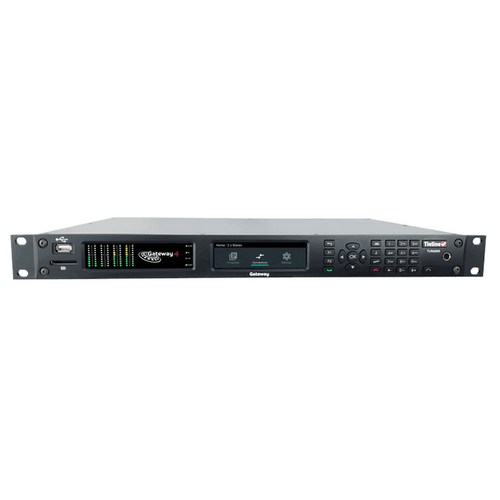

16 CH DSP-based 1RU IP codec with Dante (TLR6200-16D)

$14,488.00 $15,250.00
You save $762.00

The Tieline Gateway introduces a new era in high-density multichannel IP codec streaming. The Gateway supports up to 16 mono channels or 8 stereo streams of bidirectional IP audio in 1RU to increase efficiency and reduce rack space requirements. It interfaces easily with legacy analog and AES/EBU digital sources, as well as newer broadcast plants with AES67 and ST 2110-30 IP audio infrastructure. An optional WheatNet-IP card is also available.

The Gateway is perfect for large-scale audio distribution to single or multiple locations, as well as managing multiple incoming remotes at the studio using SmartStream PLUS redundant IP streaming and Fuse-IP data aggregation technologies over internet connections. It is interoperable with all Tieline IP codecs and compatible over SIP with all EBU N/ACIP Tech 3326, 3347 and 3368 compliant codecs and devices.

Model Info:

• 16 Channels (16 Mono or 8 Stereo)

• DSP Powered

• AES67 and SMPTE ST 2110-30 compliant for AoIP out-of-the-box

• Analog and AES3 I/O

• SIP EBU N/ACIP 3326 & 3368

• EBU Tech 3347 for IP Intercom

• WheatNet-IP card (optional)*

* denotes future release

$14,488.00 $15,250.00
You save $762.00

Out of stock

Add to quote

  • Main Features:
  • Dante Compatible
  • Analog, AES3
  • -Support for AES67, plus AES3 (AES/EBU) and analog I/O options
  • Wi-Fi (USB Dongle)
  • -Expand your network options and connect over Wi-Fi networks
  • SIP and IP Intercoms:
  • -SIP EBU Tech 3326, 3368, and EBU Tech 3347
  • Dual AoIP Ports^
  • -Stream AoIP from dual ports
  • SD card
  • -SD card slot for firmware upgrades, storage and SDIO
  • Dual USB ports
  • -Dual USB ports support firmware upgrades, storage and Wi-Fi modems.
  • Dual Internal Power Supplies
  • -Dual power supplies provide backup if one fails
  • Dual Ethernet Ports
  • -Connect using different Telcos for diversity using SmartStream PLUS redundant streaming
  • Module Compatible*
  • -Module slot for future hardware innovations
  • Multi-Unicast
  • -Support for multiple simultaneous multi-unicasts over compatible IP networks to up to 80 endpoints
  • Simultaneous Multicast
  • -Support for multiple simultaneous multicasts over compatible IP networks to unlimited endpoints
  • Alarms
  • -Silence Detection, PSU Failure, Lost connection, Temperature, AES Input, AES Reference, SNMP and more
  • Internal SSD Storage
  • -Internal Storage for recording streams
  • Expanded Backup Options
  • -Multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you’re always on the air.
  • * Denotes future release
  • Specifications:
  • Dimensions: 19” x 1 3/4” x 11 13/16” [482mm (W) x 44.45mm (H) x 300mm (D)] excluding rear connectors
  • Weight: 4 Kg /8 lb 13.100 oz
  • Power: Dual AC 90-240V IEC power inlets; 2A 50-60 Hz
  • Operating temp: 0°C to 45°C (32°F to 113°F)
  • Humidity: 20% ≤RH ≤70% (0 to 35°C/32°F to 95°F), non-condensing
  • IP Algorithms: Tieline Music, Tieline MusicPLUS, Opus, G.711, G.722, MPEG Layer 2, MPEG Layer-3 LC-AAC, HE-AAC, HE-AACv.2, AAC-LD, AAC-ELD, 16/24 bit aptX® Enhanced algorithm*
  • IP (uncompressed): Linear PCM16/24 bit 32kHz, 44.1kHz, 48kHz, 96kHz sampling
  • * Denotes future release
