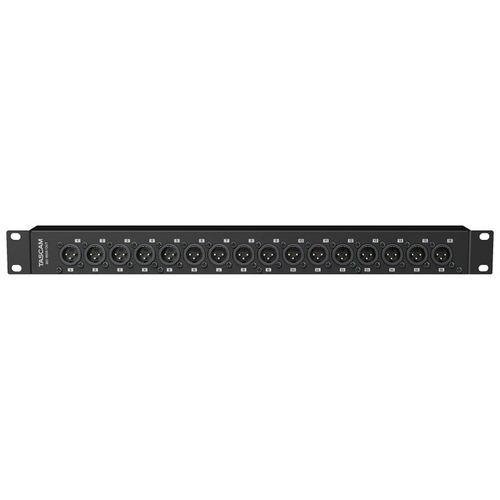

Tascam BO-16DX-OUT

Tascam

BSW PART:
BO-16DX-OUT

16 CH D-Sub XLR, Male Breakout Box

$319.00 $499.00
You save $180.00

Breakout box to XLR jacks in a way ideal for use by the broadcast, studio and PA. The TASCAM BO-16DX/OUT is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR outputs are internally bridged to dual D-Sub input connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.

Designed as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems.

The 25-pin D-sub connectors on the BO-16DX/IN employ TASCAM pin assignments that are compliant with AES59-2012.

The BO-16DX/OUT is designed to mount in either of two 180-degree rotations to simplify cabling runs and avoid unneccessary twisting of D-Sub connector cables within the rack.

Regardless direction of the unit, approximately half inch (13mm) of space is available above each connector, allowing easy access to a release lever of the XLR socket when stacked.

The unit can be mounted in a rack facing forward or backward by changing the direction that the rack-mount ears are attached to it. The rackmount ears can also be removed when using the unit placed on a tabletop.

Thanks to the compact size, including a depth of only 1.8" (45mm) behind the rackmout ears, this breakout box can even be mounted in the back of a rack case. Mounting in the front of a rack case for use as a patch bay is also possible.

$319.00 $499.00
You save $180.00

Out of stock

Add to quote

  • Main Features:
  • 16 XLR output connectors on the front panel
  • Dual D-Sub input connectors compliant with AES59-2012 on the rear panel
  • Multiple rackmounting options
  • Short unit depth allows free layout in the rack
  • 1U Rackmount size
  • Rackmount screws included
  • Specifications:
  • Front Connectors: XLR 3-32 × 16 (1: GND, 2: HOT, 3: COLD)
  • Rear Connectors: D-sub 25pin female × 2
  • Attachment screws: No.4-40 UNC × 4 (inch-type)
  • Dimensions (W×H×D): 19.0" × 1.7" × 2.0" (482.6 × 44.1 × 51.5 mm)
  • Weight: 1.99 lbs. / 0.9 kg
  • Included items: Rackmount screw kit, Owner's Manual (this document) including warranty
