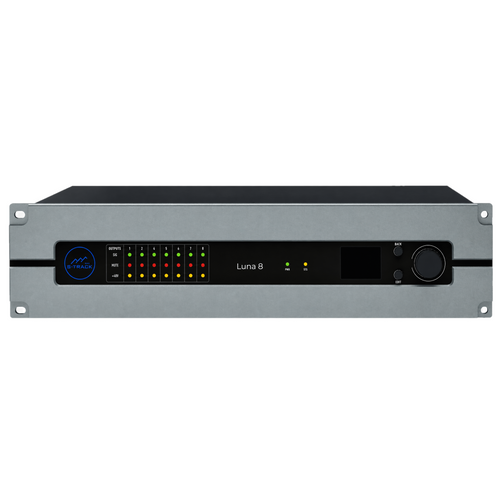

SAS STrack Luna 8

SAS STrack Luna 8

SAS

BSW PART:: SAS-LUNA-8

8 Input, 8 Output. XLR connections. Mic or Line Input with Independent Preamps and Phantom Power AV

More Interfaces and Routers More SAS

$1,683.00 MSRP: $1,819.00

You save $136.00

The SAS STrack Luna 8 is a professional rackmount Dante mic/line I/O interface designed for commercial AV, live production, recording, worship, municipal, education, and broadcast environments. Built in a 3RU chassis, Luna 8 provides eight analog XLR inputs and eight analog XLR outputs, giving system designers a compact, high-density way to connect local analog audio sources and destinations to a Dante network.

Each analog input supports mic or line-level operation with microphone preamp gain and phantom power available per input channel. Analog outputs are line level. Luna 8 provides matching Dante channel capacity for its physical I/O, with Dante Primary and Secondary RJ45 ports for redundant network audio operation. A separate RJ45 control port provides out-of-band control access.

The front-panel screen, knob, and buttons allow IP address assignment and local interaction. Through the control network connection, users can access a web GUI with adjustable input and output faders for each channel, along with individual input and output channel level metering. Dante routing and network configuration are handled through Dante Controller.

Ideal Applications
· Commercial AV systems
· Broadcast support rooms
· Live production racks
· Houses of worship
· Municipal chambers
· Education and lecture spaces
· Recording systems
· Performance venues
· Distributed Dante audio systems
· Rack-based analog audio integration

$1,683.00 MSRP: $1,819.00

You save $136.00

Out of stock

Main Features:
8 × 8 rackmount Dante mic/line I/O interface
· 3RU rackmount form factor
· Eight XLR female analog inputs
· Eight XLR female analog outputs
· Inputs support mic or line-level sources
· Microphone preamp gain available on each input channel
· Phantom power available on each input channel
· Line-level analog outputs
· 8 × 8 Dante audio channel capacity
· Dante Primary and Secondary RJ45 network ports
· Dedicated out-of-band RJ45 control port
· Front-panel screen, knob, and buttons for IP address assignment
· Web GUI control via dedicated control IP address
· Web GUI includes input/output faders and channel level meters
· Dante configuration through Dante Controller
Specifications:
Product Type
- Rackmount Dante mic/line I/O interface
Rack Form Factor
- 3RU
Analog Inputs
- 8 × XLR female
Analog Input Type
- Mic or line level
Analog Input Features
- Mic preamp gain and phantom power per input channel
Analog Outputs
- 8 × XLR female
Analog Output Type
- Line level
Dante Channels
- 8 × 8
Dante Network Ports
- Primary and Secondary RJ45
Control Port
- Dedicated out-of-band RJ45
Front Panel Control
- Screen, knob, and buttons
IP Addressing
- Assignable from front panel screen / controls
Web GUI
- Input/output faders and individual channel level meters
Dante Configuration
- Dante Controller
