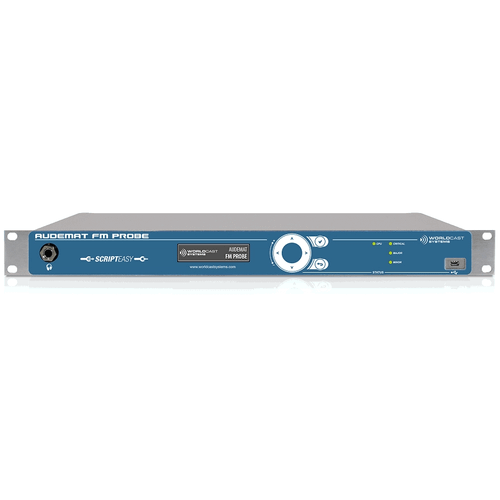

Audemat FM Probe PF

Audemat FM Probe PF

Audemat

BSW PART:
AUDEMAT-FM PROBE-PF

1U rackable Unit FM Probe Perform Pack (TF01090-PERF)

More Monitoring More Audemat
$3,369.00 MSRP: $3,680.00
You save $311.00

Reliable Insights on FM Operations

The Audemat FM Probe is a comprehensive FM monitoring solution designed for advanced signal analysis, whether onsite or across your coverage area. It monitors up to 50 channels sequentially and up to 8 channels in parallel, ensuring your FM network meets both regulatory standards and listener expectations.

Equipped with powerful tools for FM band scanning, real-time analysis, audio streaming and recording, RDS decoding, and full RF, MPX, and audio spectrum analysis, it offers unmatched visibility into your broadcast chain. The platform also features a user-friendly web interface, email and SNMP alarm notifications, and built-in telemetry with ScriptEasy for remote control and automated actions.

Benefits

Ensuring Optimal QoS and QoE
Audemat FM Probe is a must-have for ensuring you are providing the best, continuous service to listeners while meeting all signal and conformity regulations.

With this powerful, compact device, broadcasters have access to a number of features for different FM monitoring applications. This includes scanning the FM band, qualifying the FM reception quality, analyzing in-depth RDS data, and more.

Operational Cost Savings
Users benefit from standard tools to remotely control the quality of their FM broadcast as well as the good operating conditions of their facility.

A user-friendly GUI also provides real-time insights for proactive control and seamless performance - factors which contribute to keeping your operating costs down thanks to reduced on-site visits.

Scalable For Long-Term Operation
Designed to meet market needs after extensive customer feedback, Audemat FM Probe is a feature-rich hardware platform that is ready for optimal performance of monitoring, measurement, and analysis. Highly scalable, it can monitor up to 8 channels continuously and 50 channels sequencially.

Renowned Audemat-Quality Standards
The Audemat FM Probe is the result of the company’s decades of expertise developing analog and digital signal monitoring solutions for radio & TV. The Audemat range is recognized worldwide for its level of quality, accuracy, and reliability.

User Applications

Service Operators
Monitor the quality and continuity of RF signals in real time, with instant alerts in case of broadcasting issues. The system enables remote control of your transmission site and supports first-level troubleshooting - ensuring quick response and reduced downtime.

Content Providers
Continuously monitor the quality of your broadcast services and ensure your programs remain on-air at all times. The system verifies audio presence and levels, while providing in-depth analysis of RDS information to guarantee content integrity and listener satisfaction.

Regulation Authorities
Ensure full compliance with broadcasting regulations while gaining tools to analyze the root causes of signal disturbances. The system also provides detailed historical data over several weeks, supporting audits, investigations, and long-term supervision.

$3,369.00 MSRP: $3,680.00
You save $311.00

Free Shipping

Out of stock

Add to quote

  • Main Features:
  • 4 FM receivers allowing multi-tasks and continuous monitoring of several frequencies.
  • FM band scanning and monitoring
  • RF, MPX, Pilot, Audio and RDS levels measurement and monitoring
  • Real time measurements
  • Measurement history data export
  • RDS data monitoring and real-time analysis
  • MPX Power measurement and monitoring
  • Spectrum Analyzers for RF, MPX and Audio
  • Intuitive web GUI
  • Front panel display and leds/alarms
  • SNMP v2 and v3
  • 4-years Warranty
  • Cloud based monitoring with KYBIO SaaS Standard (1-year subscription free of charge)*
    *Limited to 25 WorldCast Systems devices and 1 Kybio per company.
  • Detect Broadcast Frequencies
    - Scan and Monitor the FM Band
    - Quick FM band scanning provides a full visual overview of the spectrum and helps identify frequencies you want to monitor
    - 24/7 scan monitoring can alert you to missing or unauthorized FM stations
  • Qualify the FM Reception Quality
    - Advanced FM Monitoring
    - Key measurements and parameter values displayed in intuitive graphical formats
    - Performance trends stored and viewable over a rolling three-month period
  • One View for Immediate, Complete Insights
    - All Monitoring Channels in a Single Interface
    - Unified view of all monitored stations
    - Main alarms, audio vumeters, RDS data, and operational information available from one dashboard
  • Beyond FM and Audio Insights
    - In-Depth RDS Data Analysis
    - Real-time visibility into RDS data, from basic applications to advanced services like TMC
  • Smart Add-On
    - Advanced Facility Control
    - Virtual ScriptEasy
    - Automates site operations and resolves critical errors in real time
    - Available as SaaS, on-premise, or embedded
  • Smart Add-On
    - Monitor Your Product from the Cloud
    - Kybio NMS
    - Includes one year of cloud-based monitoring
    - Centralized monitoring, real-time alerts, smart dashboards, and autoconfiguration support
  • Specifications:
  • Interfaces
    - RF Inputs: 3 BNC type (for 8 simultaneous FM programs monitoring)
    - Audio Outputs:
      - Analog: 2 XLR type / Left + Right
      - Digital: 1 XLR type / AES
      - Headphone: 6.35 mm
    - Telemetry: Compatible with ScriptEasy software
    - Relays: 8 SPDT 1 A - 30 V
    - Digital Inputs: 16, internal or external power supply
    - Metering Inputs: 4 (0-50 V, 4 ranges, ADC 10 bits)
    - µSD Card Slot: 1 for measurement history storage
    - Screen: 1 OLED for network configuration, device information, readings and alarms
    - LED Indicators: 4 for alarm status and CPU operation
    - LAN Ports: 2 RJ45 ports Base-T 10/100/1000M
    - Power Connection: 1 IEC type
  • FM Characteristics
    - Frequency Range: 87.50 to 108.00 MHz
    - Frequency Step: 10 kHz
    - RF Input Impedance: 50 Ω / 75 Ω
    - Stereo Sensitivity (19 kHz pilot): < 40 dBµV for S/N 60 dB
    - Input Sensitivity: 10 to 100 dBµV
  • Selectivity
    - At ±120 kHz: > 50 dB
    - At ±200 kHz: > 55 dB
    - At ±300 kHz: > 75 dB
    - At ±400 kHz: > 90 dB
  • Stereo Decoder
    - L/R Separation: 40 dB Typical
    - 19 kHz Suppression: > 30 dB
    - Distortion: < 0.4% at 1 kHz
  • Audio Performance
    - Deviation: 75 kHz Left or Right
    - S/N 1 kHz Mono (at 75 kHz deviation and 60 dBµV RF): 55 dB stereo
    - RMS 20 Hz-20 kHz: 55 dB stereo
    - QP CCIR: 50 dB stereo
  • Acquisitions
    - Continuous Monitoring: Up to 8 channels
    - Sequential Monitoring: Up to 50 channels
    - Maximum Number of Monitored Stations: 50
    - RF Level Acquisition Range: 20 dBµV to 95 dBµV
    - RF Acquisition Relative Precision: +/- 2 dB guaranteed
    - Audio Signal Acquisition Range: -40 dB to +3 dB
    - AF Acquisition Precision: +/- 1 dB
  • MPX Measurements
    - MPX Signal Acquisition Range: 4 kHz to 110 kHz
    - MPX Acquisition Precision: +/- 2 kHz up to 90 kHz / +/- 5 kHz from 90 to 110 kHz
    - MPX Power Acquisition Range: -12 dB to +12 dB
    - MPX Power Acquisition Precision: 0.2 dB
  • Pilot & RDS Measurements
    - PILOT 19 kHz Sub-carrier Acquisition Range: 1 kHz to 15 kHz
    - PILOT 19 kHz Acquisition Precision: +/- 1.5 kHz
    - RDS 57 kHz Sub-carrier Acquisition Range: 1 kHz to 10 kHz
    - RDS 57 kHz Acquisition Precision: +/- 1 kHz
  • Main Characteristics
    - Dimensions (L x H x D): 483 (19") x 42 (1U) x 180 mm
    - Weight: 2.35 kg
    - Main Power Supply: 100-240 VAC / 50-60 Hz
    - Power Consumption: 25 VA
  • Environmental
    - Operating Temperature: 0°C to +50°C
    - Storage Temperature: -30°C to +80°C
    - Humidity: 10-95% Non-condensing RH
