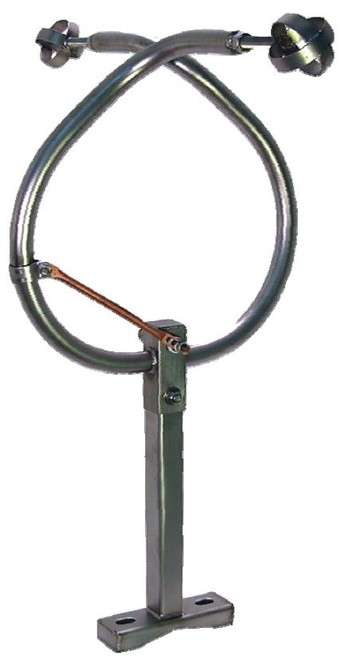

2-Bays, 2 1/2in Coax Feeder Cables, 1 2-Way Tee Splitter, Type N Female Input with Power Divider

Contact BSW for your pricing and shipping!

Contact BSW for your pricing and shipping!

Out of stock

Add to quote
  • Main Features:
  • BUILT WITH LOW POWER BROADCASTERS IN MIND. Rated at 500 watts per bay with a maximum of 3 kW for six bays. Power divider required for three or more bays.
  • CENTER OF TUNING. Ranges under 1.1:1 VSWR.
  • RUGGED CONSTRUCTION. Each bay is constructed of high grade stainless steel which provides excellent corrosion resistance and optimal mechanical properties.
  • OMNI DIRECTIONAL OR DIRECTIONAL PATTERNS. Many standard patterns available. SWR, Inc. can also provide patterns for specific coverage areas and FCC filing documentation.
  • WEATHERIZATION (OPTIONAL). Radomes or electrical deicers available for areas that experience periods of heavy icing and/or snow conditions.
  • STANDARD MOUNTING BRACKETS. Fits up to 4” tower leg or pipe. Supplied with antenna.
  • WARRANTY. 2-year limited warranty on defects and workmanship to the original purchaser.
  • *This model includes a 2-Way 7/8 EIA Flange Power Divider
  • Specifications:
  • Frequency Range: 88 – 108 MHz
  • Polarization: Circular
  • Power Rating: 500 Watts per bay
  • System Input: Type N Male or 7/8” EIA
  • VSWR: 1.3:1 ± 150 kHz
  • Dimensions: H 29” / W 16” / D 21”
