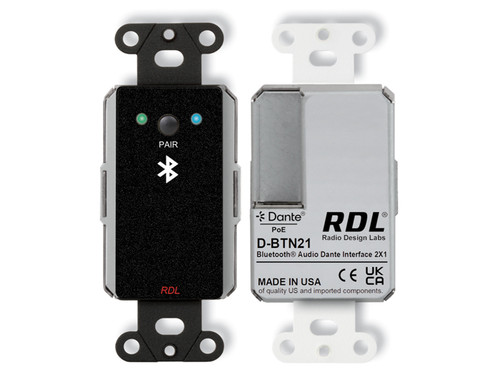

The D SERIES-BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio. The modules are configurable using RDL CONSOLE software and are controllable by compatible remote controls or software. The module multicasts Bluetooth media data and module function status for use with RDL CONSOLE software, compatible RDL remote controls and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.
Compatible RDL remote controls may be configured to control from one to eight D SERIES-BTN21 modules. Controllable Bluetooth functions include pairing or un-pairing, media source track selection (play, pause, next track, last track) and level adjustment from the originating Bluetooth device. Remote controls equipped with a screen may display the track title and artist.
The installer can customize the module Bluetooth name using RDL CONSOLE software. Additional settings include the LED dim intensity and the timeout to dim the LEDs. The default timeout is 30 seconds. The D SERIES-BTN21 fits a standard US single-gang electrical box. For EU and UK installations, we also offer the EU-BTN21, designed for European-style fixtures. The D SERIES-BTN21 is PoE-powered and available in multiple finishes with optional custom graphics. High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.
