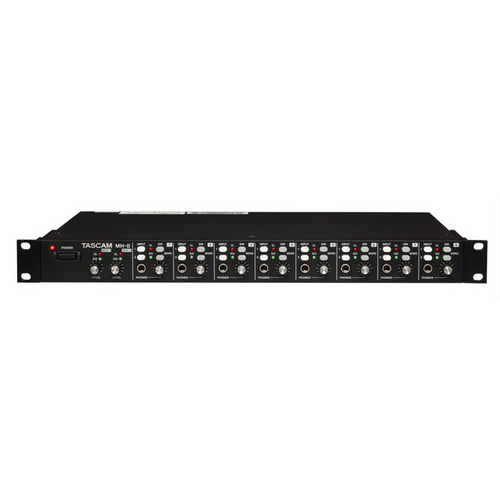

MH-8 Ultimate Headphone Amplifier

More Headphone Amplifiers More Tascam
$499.00 $699.00
You save $200.00

TASCAM's MH-8 is the ultimate headphone amplifier for studio, stage and installation. Each of the eight stereo outputs gets 250mW per side with three switchable sources available. Two stereo inputs can be shared to any of the outputs, and individual stereo direct inputs are available for each of the eight channels. A headphone out can select any one of these inputs, or mix several together. A set of foldback outputs allow you to chain other MH-8s into a system.

The MH-8 has a range stereo inputs that support various input sources; INPUT1 is equipped with XLR balanced and TRS balanced inputs, while INPUT 2 is equipped with XLR balanced and RCA-pin unbalanced inputs, and DIRECT INPUT from each headphone comes with TRS balanced inputs. The input jacks are also compatible with audio system of facilities, in-store audiovisual systems, and recording studio monitoring systems.

$499.00 $699.00
You save $200.00

Out of stock

Add to quote

  • Main Features:
  • 8 stereo 1/4" headphone outputs
  • 250mW + 250mW at 32Ω per channel
  • Each headphone output switchable to input 1, input 2 and direct input source (or a combination of the three)
  • Master input gain controls
  • 16 1/4" TRS balanced direct inputs
  • 4 XLR balanced inputs (CH1 & CH2)
  • 2 1/4" TRS balanced inputs (CH1)
  • 2 RCA unbalanced inputs (CH2)
  • 4 TRS balanced foldback outputs
  • Ground lift switch and terminal
  • Specifications:
  • INPUT 1 and 2:
    -Connector: XLR-3-31 (1: GND, 2: HOT: 3: COLD) × 2 pairs
    -Input impedance: 56kΩ
    -Nominal input level: +4dBu (1.23mV)
    -Maximum input level: +24dBu (12.3V)
  • INPUT 1:
    -Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pairs
    -Input impedance: 56kΩ
    -Nominal input level: +4dBu (1.23V)
    -Maximum input level: +24dBu (12.3V)
  • INPUT 2:
    -Connector: RCA Pin jack × 1 pair
    -Input impedance: 22kΩ
    -Nominal input level: –10dBu (0.3V)
    -Maximum input level: +10dBu (3.16V)
  • DIRECT INPUT:
    -Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 8 pairs
    -Input impedance: 56kΩ
    -Nominal input level: +4dBu (1.23V)
    -Maximum input level: +24dBu (12.3V)
  • FOLDBACK OUT:
    -Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 2 pairs
    -Input impedance: 94kΩ
    -Nominal input level: +4dBu (1.23V)
    -Maximum input level: +24dBu (12.3V)
  • PHONES OUT:
    -Connector: 1/4" (6.3mm) Stereo Phone jack × 8
    -Maximum output level: 250mW + 250mW (32Ω)
  • Power: AC 100 - 240V, 50/60Hz
  • Power consumption: 36W
  • Dimensions (W×H×D): 19.0" × 1.73" × 11.0" / 482 × 44 × 280 mm
  • Weight: 8.4 lbs. / 3.8 kg
  • Included items: Power cord, Rackmounting screw kit, Owner's manual (with warranty)
  • Frequency response:
    -PHONES out: 20Hz to 50kHz/100mW, 32Ω ±3dB
    -FOLDBACK out: 10Hz to 100kHz ±3dB
  • S/N ratio:
    -PHONES out: 85dB or greater (A-weighted, 20kHz, LPF)
    -FOLDBACK out: 90dB or greater (A-weighted, 20kHz, LPF)
  • THD:
    -PHONES out: 0.05% or less (when outputting 100mW + 100mW 32Ω, 20Hz HPF and 20kHz LPF)
    -FOLDBACK out: 0.07% or less (20Hz HPF and 20kHz LPF)
  • Channel separation:
    -PHONES out: 50dB or greater (within a channel, A-weighted, 20kHz LPF, 1kHz nominal inout and output, 32Ω termination)
    -FOLDBACK out: 90dB or greater (A-weighted, 20kHz LPF, 1kHz nominal inout and output, 600Ω termination)
  • Crosstalk:
    -PHONES out: 65dB or greater (A-weighted, 20kHz LPF, 1kHz nominal inout and output, 32Ω termination)
